Batteries
Battery Type |
Lead-acid battery |
Expected Battery Life (years) |
3 – 5 |
Dimensions And Weight
Weight (metric) |
42.5 kg |
Product Dimensions (metric) |
8.6 ( H ) x 43.8 ( W ) x 63.2 ( D ) cm |
General
Warranty |
2 years repair or replace |
Main
Provided equipment |
User manual Battery cable Rack mounting brackets |
Number of rack unit |
2 U |
Environmental
Operating Temperature |
0…40 °C |
Storage and Transportation Temperatue |
-15…40 °C |
Operating Relative Humidity |
0 – 95 (Non-condensing) |
Operating Elevation |
0 – 3000 meters |
Storage Temperature |
-15 – 40 °C |
Operating altitude |
0…3000 m |
Relative humidity |
0…95 % non-condensing |
Mounting mode |
Rack-mounted with kit |
Environmental Requirements
Storage-temperature |
-15…40 °C |
Relative-Humidity |
0…95 % non-condensing |

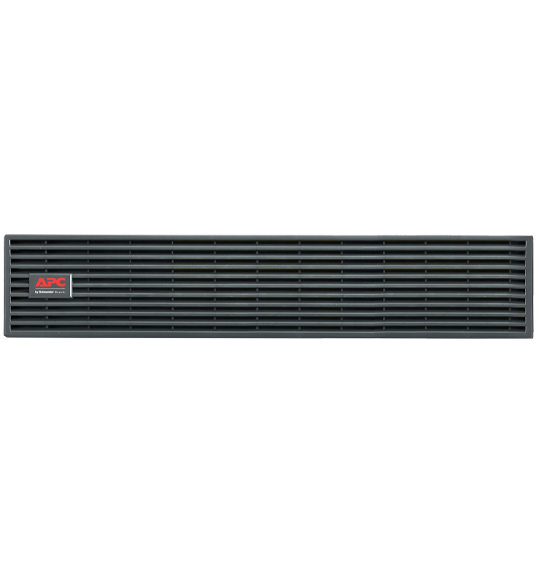

Buy Schneider Electric APC Easy UPS On-Line SRV 72V RM Battery Pack for 2/3 kVA Extended Runtime Model SRV72RLBP-9A
This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2000VA double-conversion on-line 4U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 4x Brazilian 2P+T outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
Serviceability
Predictive failure notification. Provides early-warning fault analysis ensuring proactive component replacement. Disconnected battery notification Warns when a battery is not available to provide backup power. Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced. User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)Audible alarms Provides notification of changing utility power and UPS power conditions
Manageability
Intelligent Card Slot Customize UPS capabilities with management cards. LCD graphics display Text and mimic diagrams that display modes of operation, system parameters and alarms. LED Indicators Provide easy-to-read status of the unit and utility power conditions. Network manageable Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded. Serial connectivity
Provides management of the UPS via a serial port.
