Description

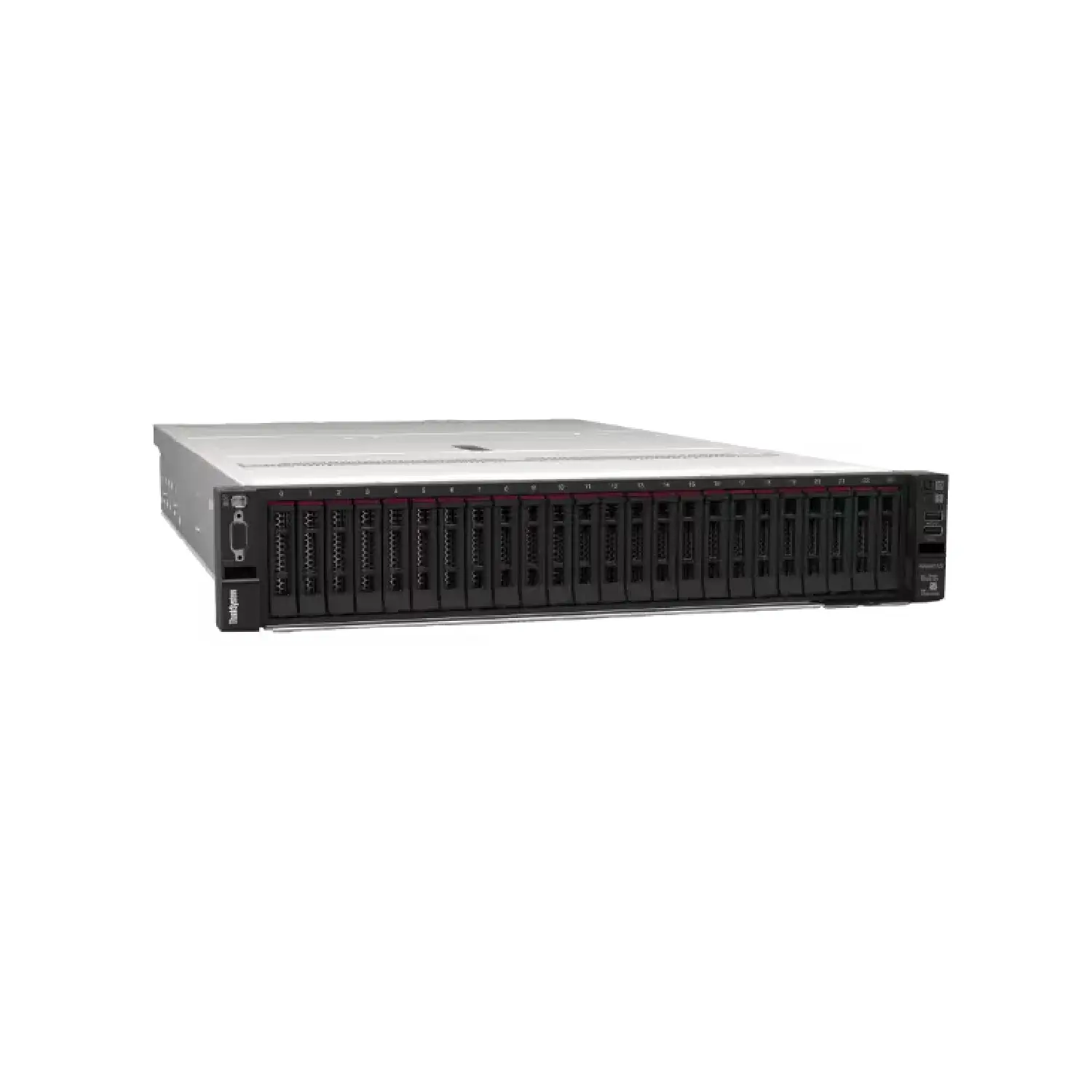

Lenovo ThinkSystem SR650 V2 – 7Z73WDFY00

The Lenovo ThinkSystem SR650 V2 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 V2 is based on the 3rd generation Intel Xeon Scalable processor family (formerly codenamed “Ice Lake”) and the Intel Optane Persistent Memory 200 Series.

The SR650 V2 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.

Combining performance and flexibility, the SR650 V2 server is a great choice for enterprises of all sizes. The server offers a broad selection of drive and slot configurations and offers numerous high performance features. Outstanding reliability, availability, and serviceability (RAS) and high-efficiency design can improve your business environment and can help save operational costs.

Scalability and Performance

The SR650 V2 offers numerous features to boost performance, improve scalability, and reduce costs:

• Supports one or two third-generation Intel Xeon Processor Scalable processors
• Up to 40 cores and 80 threads
• Core speeds of up to 3.6 GHz
• TDP ratings of up to 270W
• Supports up to 8TB of DDR4 memory running at 3200 MHz
• Compatible with Intel Optane Persistent Memory 200 Series
• Supports up to eight single-width GPUs or three double-wide GPUs
• Up to 40 x 2.5-inch or 20 x 3.5-inch hot-swap drive bays
• Supports up to 32 NVMe drives for high-speed storage performance
• PCIe 4.0 expansion with up to eight PCIe slots and dedicated OCP 3.0 networking

Availability and Serviceability

The SR650 V2 provides many features to simplify serviceability and maximize system uptime:

• Designed for 24/7 operation
• Advanced memory protection with SDDC, ADDDC, and memory mirroring
• Hot-swap drives with RAID support for data protection
• M.2 RAID-1 boot options for enhanced reliability
• Redundant hot-swap power supplies and cooling fans
• Light Path Diagnostics for faster fault detection
• SSD support for greater reliability and performance
• Proactive hardware monitoring and predictive failure alerts
• Built-in diagnostics and recovery tools via XClarity
• Automatic restart after power interruptions

Manageability and Security

Systems management features simplify local and remote management of the SR650 V2:

• Integrated Lenovo XClarity Controller (XCC) for server monitoring and management
• Optional XCC upgrades for advanced remote control and media mounting
• Lenovo XClarity Administrator for centralized infrastructure management
• UEFI-based provisioning, deployment, and diagnostics tools
• Support for IPMI 2.0, SNMP 3.0, and Redfish REST API
• TPM 2.0 support for advanced hardware security
• Secure Boot support for trusted operating systems
• AES-NI encryption acceleration and Intel security technologies
• Optional chassis intrusion detection and lockable bezel

Energy Efficiency

The SR650 V2 offers several energy-efficient features to reduce power consumption and operational costs:

• Energy-efficient system board components
• 80 PLUS Platinum and Titanium-certified power supplies
• SSDs consume significantly less power than traditional HDDs
• Optimized hexagonal ventilation design for improved airflow
• Optional Lenovo XClarity Energy Manager for power monitoring and optimization
