Description

• Space Utility Optimization
  • Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions

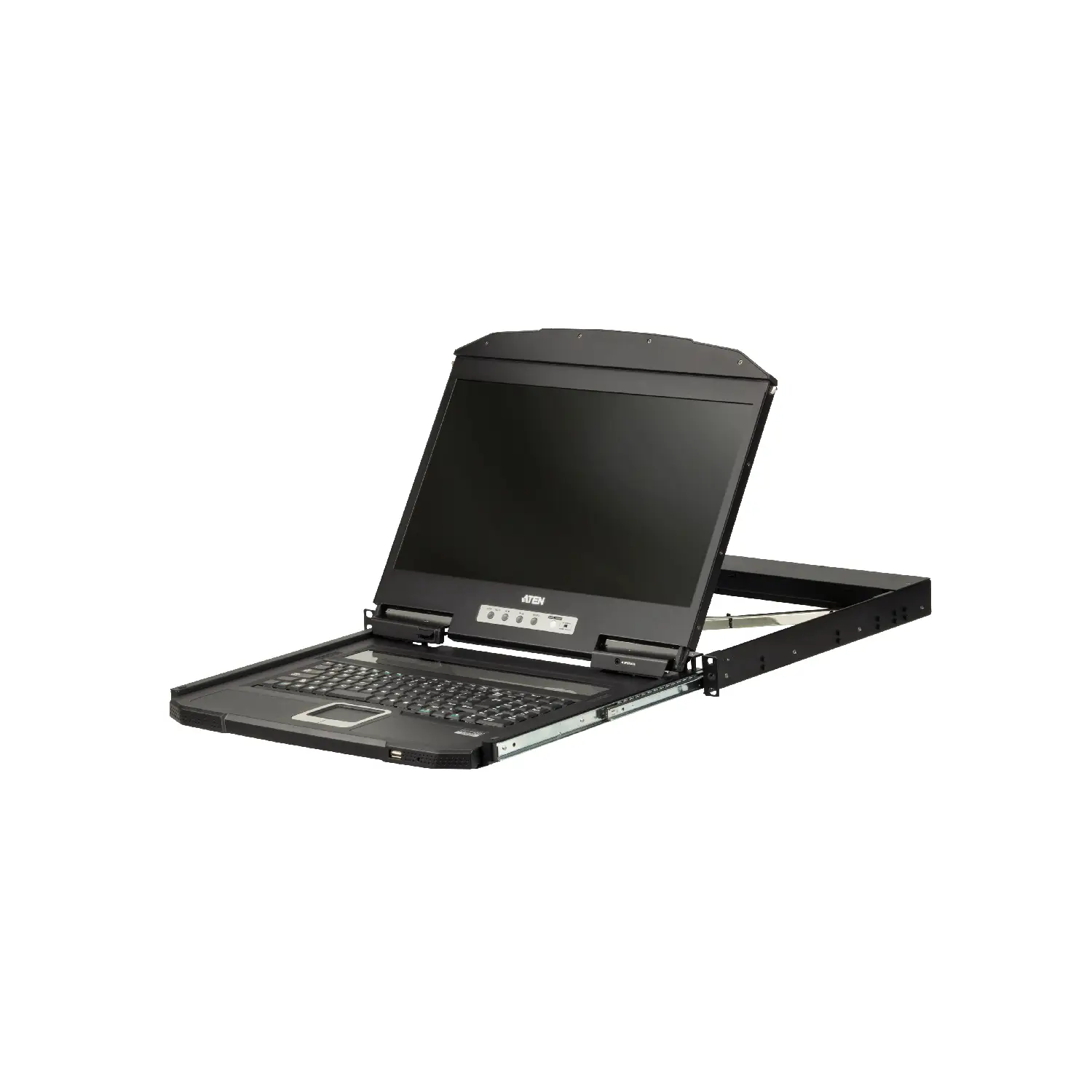

  • Integrated LCD KVM console with an 18.5” LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
  • Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
  • Console lock – enables the console drawer to remain securely locked away in position when not in use
  • Optional 2-in-1U Mounting Kit (2K-0001/2K-0002/2K-0007) – fitting the CL3100 and a rack KVM switch/KVM over IP switch in 1U of space on a rack for space-saving, easy and flexible operation*

• Reliability and Operational Versatility
  • Supports VGA video input; supports an external console with USB / VGA connectors
  • 18.5″ LCD screen with resolution of 1366 x 768 @ 60Hz
  • External console supports input video resolutions up to 1920 x 1200 @ 60Hz
  • Audio support for connecting speakers
  • Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
  • Console selection via hotkey
  • Standard 105-key keyboard

• Installation Flexibility
  • Standard rack mount kit included
  • Optional rack mount kits available including easy installation options*
  • No software required
  • Firmware upgradable
  • Supports hot-plugging
