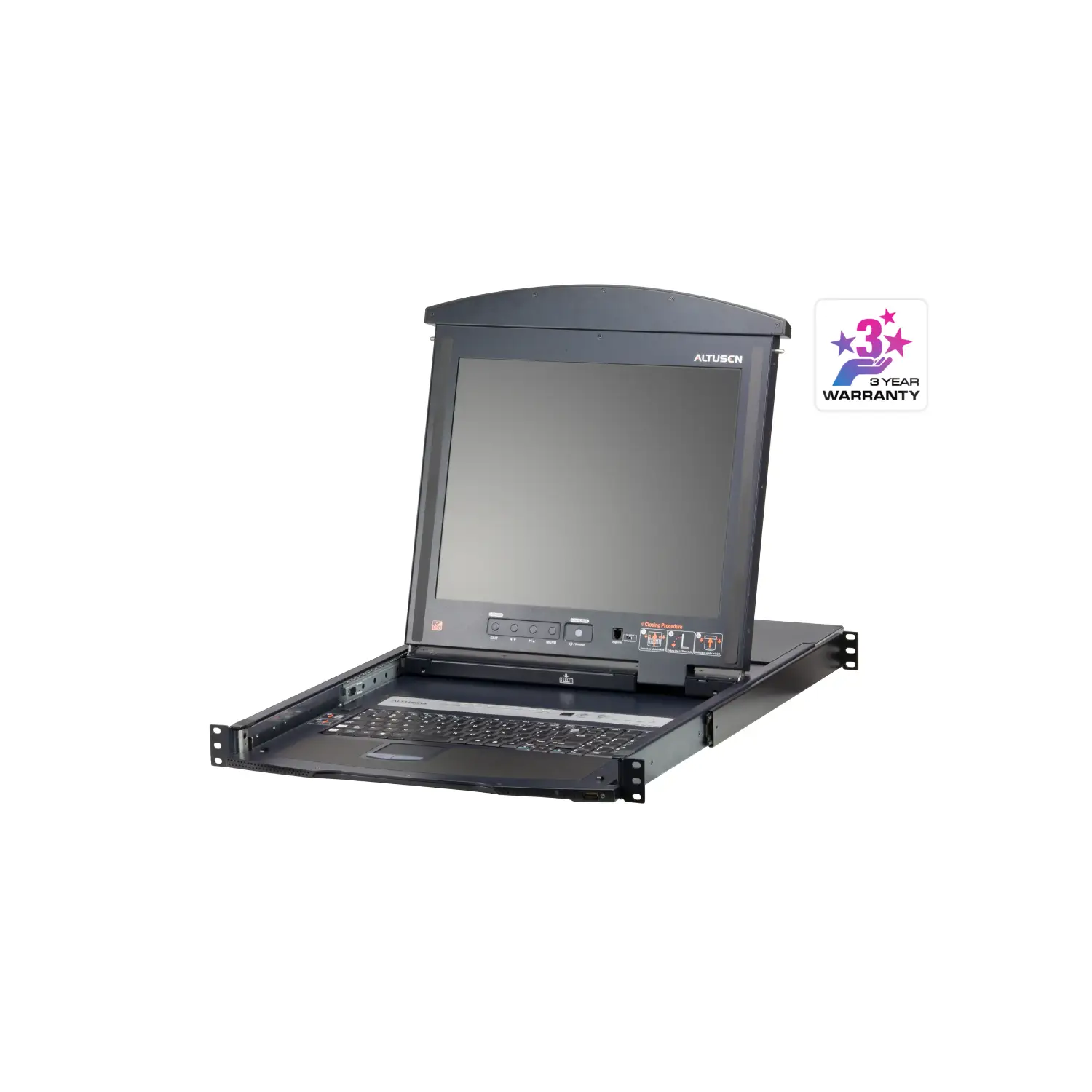

ATEN | 19" 8 Port cat5 Dual Rail LCD Over IP KVM Switch- Local and Remote Shared Bus | KL1508AIN-AXA-AE
11,741.00 AED
- Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operationmm in 1U of rack space
- Space-Saving RJ-45 connectors and Cat 5e / 6 cabling
- Superior Video Quality- supports the video resolutions up to 1280×1024@75 Hz for up to 50 meters
Free Shipping
Zero delivery charges, maximum convenience.
If You Have Any Query,
Please Contact Us
Our Sales Specialist
Name: Anjalina
Physical Store Available
100% Genuine
24/7 Support
Description
- ATEN KL1508AIN have Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM console with 17″ or 19″ LED-backlit LCD monitor in a Dual Rail housing
- A single console controls up to 8 computers
- Space-Saving RJ-45 connectors and Cat 5e / 6 cabling
- KVM adapters* designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
- OSD tree structure makes finding and managing computers easy
- Conveniently located station and port selectors with LED displays to quickly switch to target computers
- Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operationmm in 1U of rack space
- Additional hot-pluggable USB mouse port on front panel that supports HID device for keyboard and mouse
- Dual Rail – LCD monitor slides independently of the keyboard / touchpad
- LCD module rotates up to 120 degrees for a more comfortable viewing angle
- Console lock – enables the console drawer to remain securely locked away in position when not in use
- ATEN KL1508AIN have Dedicated Hotkey Mode and OSD Invocation Keys reduce the number of keystrokes and provide quick access to these functions
- Daisy chain up to 31 additional KVM switches to control up to 256 computers
- Auto Scan mode enables continuous monitoring of user-selected computers
- Multiplatform support: PC, Mac, Sun and Serial
- Superior Video Quality- ATEN KL1508AIN supports the video resolutions up to 1280×1024@75 Hz for up to 50 meters
- Configure port access rights for users on a port – by – port basis
- Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
- Multiple User Accounts -supports up to 10 user and 1 administrator accounts
- Two-Level Password Security- supports one administrator and ten user profiles. Strong password protection prevents unauthorized accessing to the installation
- LCD power button helps save energy and prolong displays’ life
- Broadcast Mode sends commands from the console to all computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
- Adapter ID
- Firmware Upgradeable
- ATEN KL1508AIN have Optional rack mount kits available including easy installation options
- Keyboard Language support: English(US); English(UK); French, German, German(Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese and Turkish
Computer Connections
| Direct | 8 |
| Maximum | 256 (via Daisy-chain) |
| Port Selection | OSD, Hotkey, Pushbutton |
Connectors
| KVM Ports | 8 x RJ-45 Female |
| Daisy Chain Ports | 1 x DB-25 Male |
| Firmware | 1 x RJ-11 Female |
| Power | 1 x IEC60320/C14 |
| External Console Ports | 1 x HDB-15 Female (Blue); 2 x USB Type A Female; 1 x 6-pin Mini-DIN Female (Purple); 1 x 6-pin Mini-DIN Female (Green) |
| External Mouse Port | 1 x USB Type A Female (Front) |
Switches
| Port Selection | 8 x Pushbutton |
| Station Selection | Pushbutton |
| Reset | 1 x Semi-recessed Pushbutton |
| Firmware Upgrade | 1 x Slide Switch |
| Power | 1 x Rocker Switch |
| LCD Control | 4 x Pushbutton |
| LCD Power | 1 x LED Pushbutton |
LEDs
| Online | 8 (Green) |
| Selected | 8 (Orange) |
| Power | 1 (Blue) |
| Station ID | 1 x 2 Digit 7-segment (Orange) |
| Lock | 1 x Num Lock (Green); 1 x Caps Lock (Green); 1 x Scroll Lock (Green) |
| LCD Power | 1 (Orange) |
| LED Illumination Light | 1 x LED Illumination Light |
Panel Spec
| LCD Module | 19″ TFT-LCD |
| Resolution | 1280 x 1024 @ 75 Hz |
| Response time | 5 ms |
| Viewing Angle | 170° (H), 160° (V) |
| Pixel Pitch | 0.294 mm x 0.294 mm |
| Support Color | 16.7M colors |
| Contrast Ratio | 1000:1 |
| Luminance | 250 cd/m |
Video
| Input Video Resolution | 1920 x 1200 @ 60 Hz |
| Second console | 1920 x 1200 @ 60 Hz |
| Scan Interval | 1–255 seconds |
Emulation
| Keyboard / Mouse | PS/2, USB, Serial |
| Maximum Input Power Rating | 100-240V AC; 50-60Hz; 1A |
| Power Consumption | AC110V:19.9W:104BTU/h |
Physical Properties
| Housing | Metal |
| Rail Type | Dual Rail |
| Weight | 15.35 kg ( 33.81 lb ) |
| Dimensions (L x W x H) | 48.00 x 70.12 x 4.40 cm |
| Question | What is the ATEN KL1508AIN used for? |
| Answer | The ATEN KL1508AIN is designed for centralized management of multiple servers in data centers, server rooms, and enterprise IT environments. It provides secure local and remote access through an integrated LCD console and IP connectivity. |
| Question | Is the ATEN KL1508AIN suitable for data centers in Dubai and the UAE? |
| Answer | Yes. It is an ideal solution for businesses, data centers, government organizations, educational institutions, and enterprises that require reliable server management across the UAE. |
| Question | How many servers can the ATEN KL1508AIN manage? |
| Answer | The ATEN KL1508AIN can directly manage up to 8 servers and can be expanded by cascading compatible KVM switches to support larger server environments. |
| Question | Does the ATEN KL1508AIN support remote server access? |
| Answer | Yes. It features Over IP KVM functionality, allowing authorized users to securely monitor and manage connected servers remotely from virtually anywhere. |
| Question | What are the key features of the ATEN KL1508AIN? |
| Answer | It includes an integrated 19-inch dual rail LCD console, 8 Cat5 KVM ports, local and remote access, high-resolution video support, and enterprise-grade security for efficient server management. |
| Question | ATEN KL1508AIN vs ATEN KL1508A – What is the difference? |
| Answer | The KL1508AIN includes Over IP remote management, allowing administrators to access servers over the network, while the KL1508A is primarily designed for local KVM management. |
| Question | Is the ATEN KL1508AIN suitable for enterprise IT infrastructure? |
| Answer | Yes. Its secure remote management, integrated LCD console, and scalable architecture make it an excellent choice for enterprise server rooms and mission-critical IT environments. |
| Question | Why should I choose Promise Store for the ATEN KL1508AIN? |
| Answer | Promise Store offers 100% genuine ATEN products, competitive UAE pricing, fast nationwide delivery, expert pre-sales consultation, and dependable after-sales support, making it a trusted partner for enterprise KVM and IT infrastructure solutions. |
