Description

• Exclusive Features of ATEN KL1108VN KVM Switch
• High-grade security – supports TLS 1.3 and an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #4282)
• Advanced FPGA graphics processor with HD resolutions up to 1920 x 1200
• 2x faster virtual media transmission speeds

• Hardware
• Exclusive LED illumination light designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions

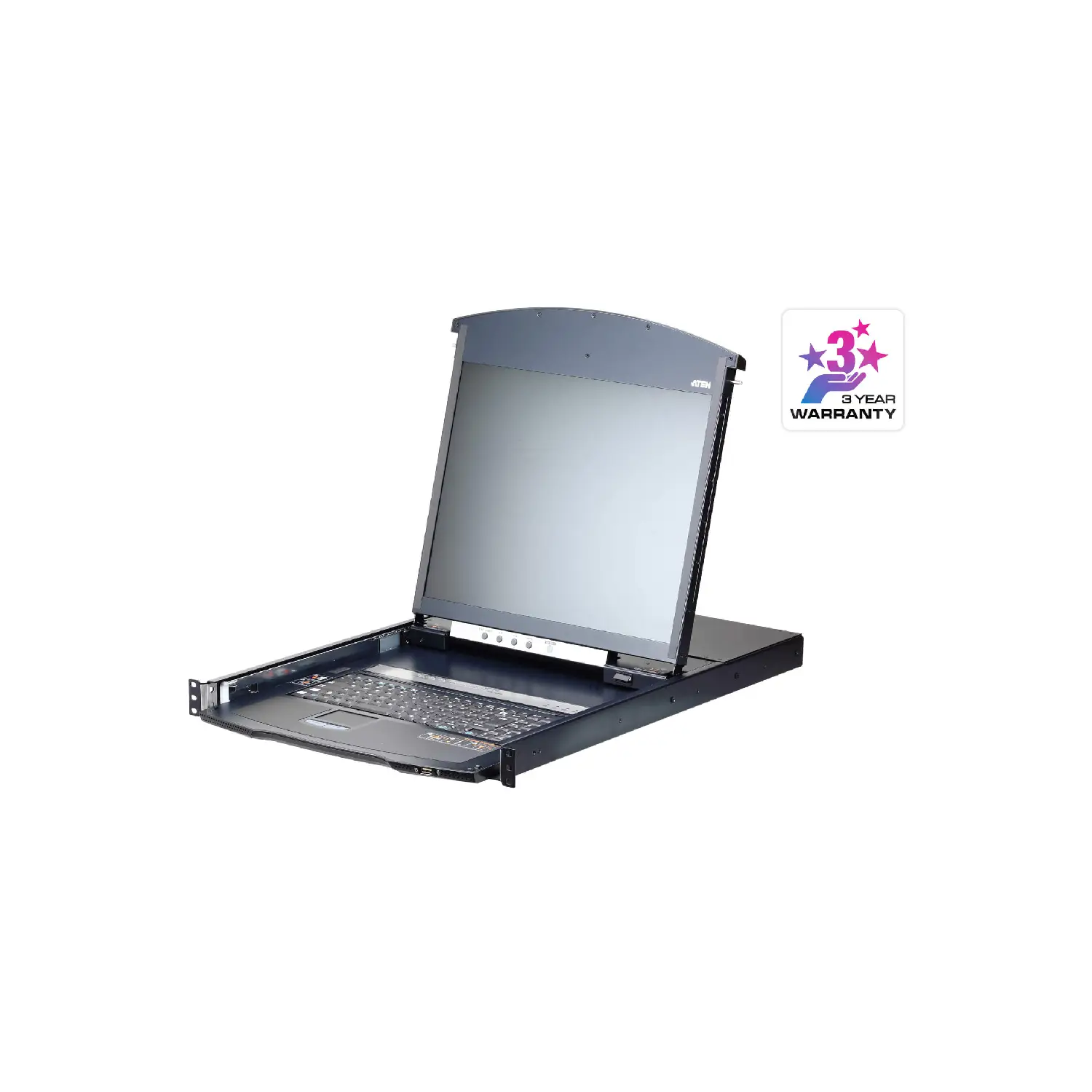

• Integrated KVM console with 19” LED-backlit LCD monitor in a dual rail housing
• One bus for local and one bus for remote KVM over IP access
• Space-saving RJ-45 ports for Cat 5e/6 cable connections
• KVM adapter cables with automatic conversion allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
• Extra Console Ports – manage computers from the built-in LCD screen or an external console setup (monitor, USB keyboard and mouse)
• ATEN KL1108VN KVM Switch Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
• Supports external USB mouse
• Dual rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
• Dual Rail Housing – allows the LCD monitor to slide independently of the keyboard and touchpad
• LCD module rotates up to 120 degrees for a more comfortable viewing angle
• Console lock enables the console drawer to remain securely locked away when not in use
• LCD power button saves energy and prolongs the life of the display
• High Port Density – RJ-45 connectors provide up to 16 ports in 1U housing
• Two 10/100/1000 Mbps NICs for redundant LAN or dual IP operation
• Blade server support
• ATEN KL1108VN KVM Switch Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
• High Video Resolutions – up to 1920 x 1200 @ 60 Hz with 24-bit color depth at the switch’s external local console and on remote displays; up to 1280 x 1024 @ 75 Hz at the switch’s built-in LCD screen
• Monitor and control up to 8 computers on a single level or control up to 128 computers in a cascade*
• Optional rack mount kits available including easy installation options
  Note: Cascade-compatible KVM switches include the following: CS1308, CS1316, KH1508A and KH1516A.

• Management
• Up to 64 user accounts
• Up to 32 concurrent logins
• End Session Feature – administrators can terminate any remote session
• Port Share Mode allows multiple users to gain access to a server simultaneously
• Remote power control for attached ATEN PDU devices
• Integration with ATEN CC2000 Management Software
• Integration with ATEN CCVSR Video Session Recording Software*
• Supports ATEN KVM over IP Console Station (KA8270 / KA8280 / KA8278 / KA8288)
• Event logging and Windows-based Log Server support
• Local Log Event
• Firmware upgradeable
• IPv6 capable
• Critical system event notification via SMTP email; SNMP trap and Syslog support
• Customizable events notification
• Out-of-Band Access – modem dial-in / dial-out / dial-back support
• Adapter ID Function – stores port information, allowing administrators to relocate servers to different ports without having to re-configure adapters or switches
  Note: Supports recording computer operations accessed via remote sessions.

• Easy-to-Use Interface
• Easy computer selection via pushbuttons, OSD (On-Screen Display), and Browser-based GUI
• Local console, browser, and AP GUIs offer a unified multi-language interface to minimize user training time and increase productivity
• Multiplatform client support (Windows, Mac OS X, Linux, Sun)
• Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Netscape
• Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
• ATEN KL1108VN KVM Switch Supports web-friendly KVM-over-IP access with HTML5 WebClient viewer – users can remotely access all the connected servers and PCs without Java or browser plug-in installation
• ATEN Exclusive Panel Array™ Mode – monitor all ports in a grid display of all desktops at both the local and remote screen
• Keyboard/Mouse Broadcast – keyboard and mouse signals can be duplicated across all servers at once
• Launch virtual remote desktop sessions to control multiple servers at the same time
• Full screen or scalable virtual remote desktop window
• Video syncing allows the local console monitor’s EDID information to be stored on the KVM Adapter Cables for display resolution optimization

• Advanced Security
• Remote authentication support: RADIUS, LDAP, LDAPS and Microsoft Active Directory
• ATEN KL1108VN KVM Switch Supports TLS 1.3 encryption and RSA 2048-bit certificates to secure browser logins
• Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
• Configurable user and group permissions for server access and control
• Automated CSR creation utility and third-party CA certificate authentication
• IP/MAC Filter support for enhanced security protection

• Virtual Media
• Virtual media enables file application, OS patching, software installations and diagnostic testing
• Works with USB-enabled servers at the operating system and BIOS level
• Supports DVD/CD drives, USB mass storage devices, hard drives and ISO images
• ATEN KL1108VN KVM Switch Supports Smart Card/CAC Reader

• Virtual Remote Desktop
• Video quality can be adjusted in ATEN KL1108VN KVM Switch to optimize data transfer speeds; color depth, threshold and noise settings reduce data transmission to lower bandwidth
• Full screen or scalable window for virtual remote desktop
• Message board feature allows logged in users to communicate with each other
• Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
• Exit Macro support
• On-screen keyboard with multi-language support
• BIOS-level access for troubleshooting
