Description

Hardware

• Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions

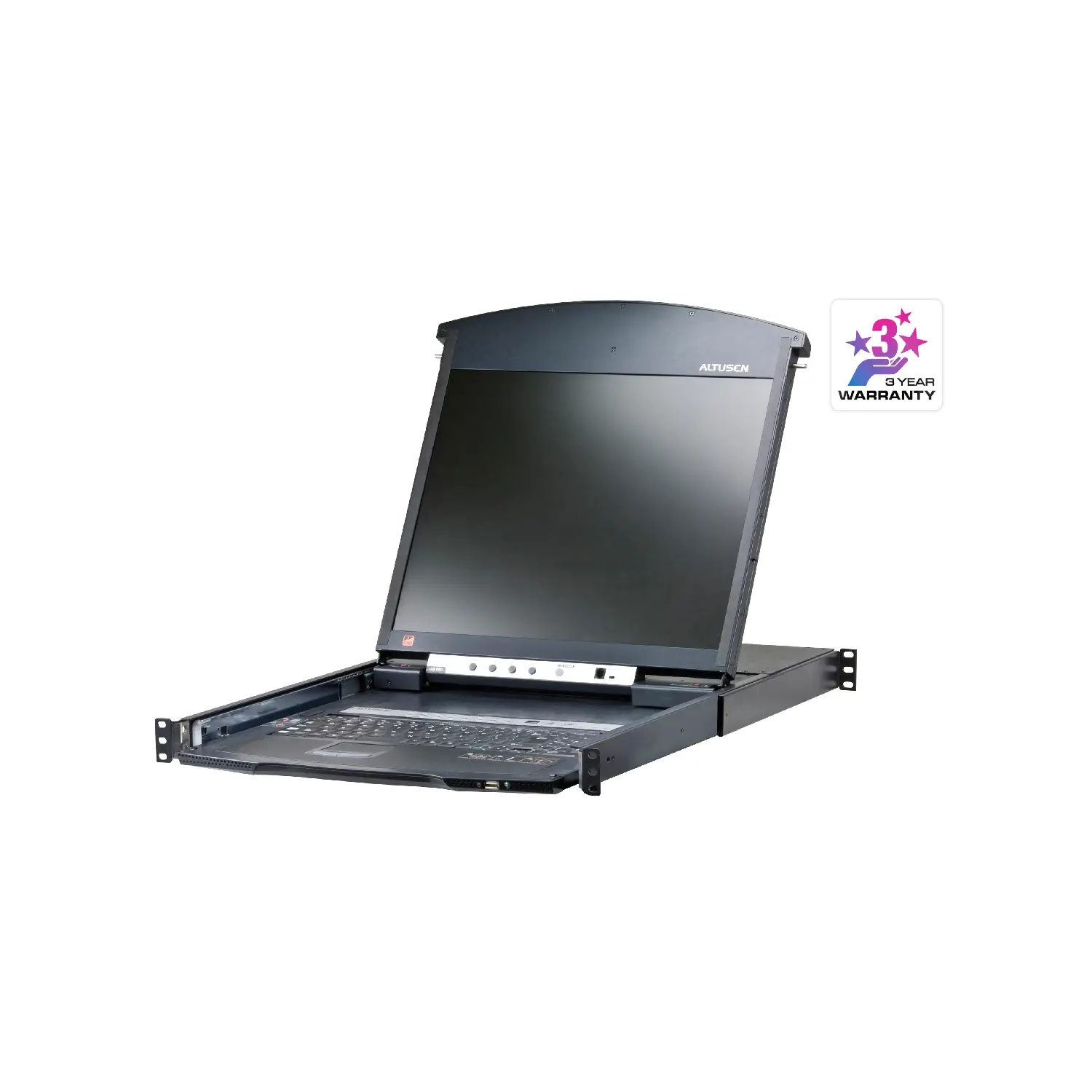

• Integrated KVM console with 17¨ or 19¨ LED-backlit LCD monitor in a Dual Rail housing
• A single console controls up to 16 computers
• Daisy chain up to 15 additional KVM switches to control up to 256 computers¹
• One bus for remote KVM over IP access
• Space-saving RJ-45 connectors and Cat 5e/6 cabling
• KVM adapters designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
• Multiplatform support: PC, Mac, Sun and Serial
• Supports external USB mouse
• Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
• Dual Rail – LCD monitor slides independently of the keyboard/touchpad
• LCD module rotates up to 120 degrees for a more comfortable viewing angle
• Console lock – enables the console drawer to remain securely locked away in position when not in use
• LCD power button helps save energy and prolong displays´ life
• Superior Video Quality – supports input video resolutions up to 1920 x 1200 @ 60Hz² up to 30 meters, 1600 x 1200 @ 60Hz up to 40 meters, and 1280 x 1024 @ 75Hz up to 50 meters
• Optional rack mount kits available including easy installation optionsManagement
• Up to 64 user accounts
• Up to 32 concurrent logins
• End session feature – administrators can terminate any running session
• Adapter ID – stores port information allowing administrators to relocate servers to different ports, without having to reconfigure the adapters and switch
• Port Share Mode allows multiple users to gain access to a server simultaneously
• Remote power control for attached Power Over the NET™ devices
• Event logging and Windows-based Log Server support
• Local Log Event
• Firmware upgradeable
• IPv6 capableEasy-to-Use Interface
• Easy computer selection via pushbuttons, Hotkey Mode, OSD (OnScreen Display), and Browser-based GUI
• Local Console, Browser, and AP GUIs offer a unified multi language interface to minimize user training time and increase productivity
• Multiplatform client support (Windows, Mac OS X, Linux, Sun)
• Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Edge
• Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
• Panel Array Mode™
• Keyboard broadcast* – keyboard input can be duplicated on all the attached serversNote: Local Console only

  Advanced Security

• Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
• Supports TLS 1.2 encryption and RSA 2048-bit certificates to secure users log in from browser
• Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent Keyboard/Mouse and video data encryption
• IP/MAC Filter support for enhanced security protection
• Configurable user and group permissions for server access and controlVirtual Remote Desktop
• Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
• Full-screen or sizable and scalable Virtual Remote Desktop
• Message board feature allows logged in users to communicate with each other
• Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
• On-screen keyboard with multi language support
• BIOS-level access
• Keyboard Language support: English(US); English(UK); French, German, German(Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese and Turkish
