Description

• • Space Utility Optimization
    • Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions

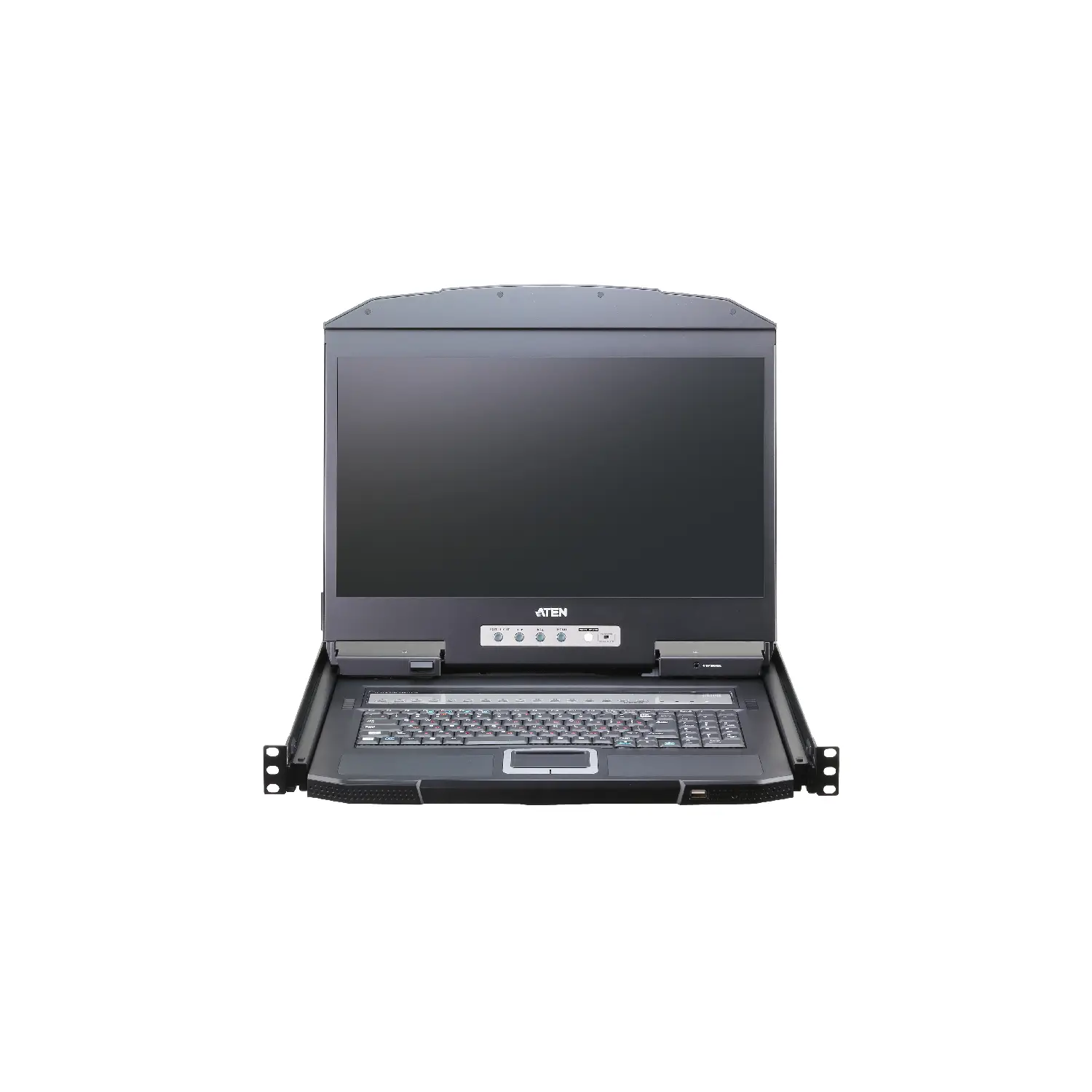

    • Integrated LCD KVM console with an 18.5” LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
    • Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
    • Console lock – enables the console drawer to remain securely locked away in position when not in use



  • Reliability and Operational Versatility
    • Superior video quality – up to 1366 x 768 @60Hz; DDC2B
    • Cascade up to 2 levels – CL3116 controls up to 256 computers from a single console (With compatible KVM Switches: CS1308/CS1316)
    • Dual Interface – supports computers with PS/2 or USB keyboards and mice
    • Auto PS/2 and USB interface detection
    • Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneously booting multiple computers even when the console focus is elsewhere
    • Computer selection via pushbuttons, hotkeys, and multilingual on-screen display (OSD)
    • Broadcast mode – allows you to send commands from the console to all computers to perform operations simultaneously
    • Two level password security – only authorized users can view and control computers
    • Auto Scan mode – enables continuous monitoring of user-selected computers
    • Keyboard Language support: English(US); English(UK); French, German, German(Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese and Turkish.
    • Additional hot-pluggable USB mouse port on front panel that supports HID device for keyboard and mouse



  • Installation Flexibility
    • Standard rack mount kit included
    • Optional rack mount kits available including easy installation options*
    • No software required
    • Firmware upgradable
    • Supports hot-plugging
