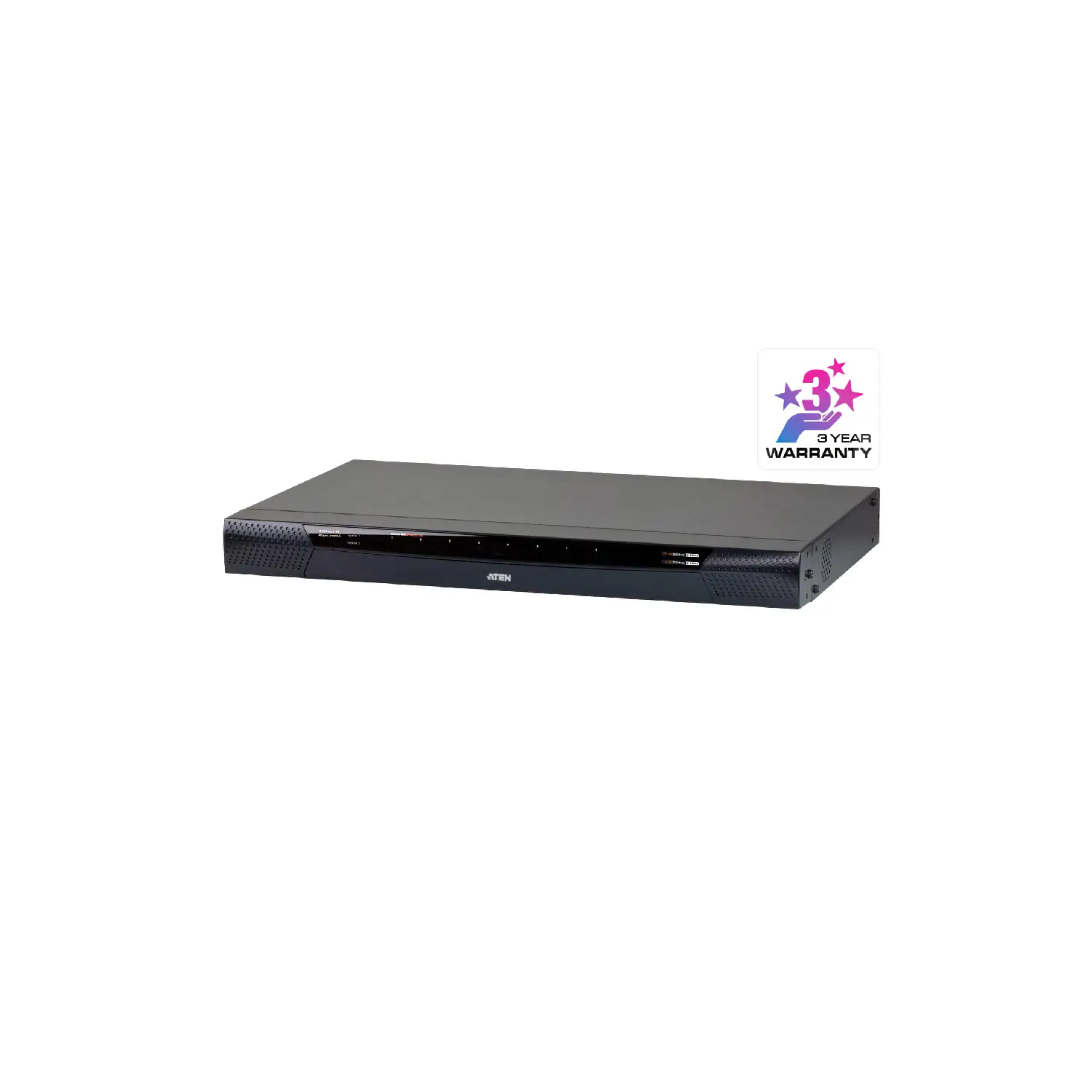

ATEN | 1-Local/1-Remote Access 8-Port Cat 5 KVM over IP Switch with Virtual Media (1920 x 1200) | KN1108VA-AX-E
(0 Reviews) | ATEN | In Stock
5,819.00 AED
  • Panel Array Mode™ – monitors all ports in a grid display (both local and remote screens)
  • Supports web-friendly KVM-over-IP access with HTML5 WebClient viewer
  • Integrated with ATEN CC2000 Centralized Management Software and  CCVSR Video Session Recording Software
  • Laptop USB Console (LUC) – a dedicated USB port directly connects to a laptop for easy console operation
See More
Categories: ,
BUY NOW
Share:
🚚

Free Shipping

Zero delivery charges, maximum convenience.

If You Have Any Query,
Please Contact Us

Our Sales Specialist

Name: Anjalina

+971 56 675 9483

anjalina@promisegulf.com

info@promisegulf.com

+971 56 675 9483

Physical Store Available

100% Genuine

24/7 Support

Description

  • Hardware
    • High port density – RJ-45 connectors for up to 8 ports in a 1U housing
    • Laptop USB Console (LUC) – A dedicated USB port directly connects to a laptop for easy console operation
    • Two separate buses for one local console access and one remote over IP access
    • Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
    • Blade server support
    • Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
    • Local console provides PS/2 and USB keyboard and mouse support
    • Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
    • Audio enabled
    • Virtual Media support lets you map DVD-CD-ROMs and other storage media to a remote server
    • Dual Power Supply
    • High video resolution – up to 1920 x 1200 @ 60Hz for local and remote sessions1
    • Monitor and control up to 8 computers on a single level, or control up to 128 computers in a cascade2.

      Note:
      1. 1920 x 1200 only supported by KA7166, KA7168, KA7169, KA7175, KA7176, KA7177, KA7170, and KA7178
      2. Cascade-compatible KVM Switches include the following: CS9134, CS9138, CS1308, CS1316, KH1508A, and KH1516A



  • Management
    • Up to 64 user accounts
    • UP to 32 concurrent logins
    • End session feature – administrators can terminate running sessions
    • Event logging and Windows-based Log Server support
    • Critical system event notification via SMTP email; SNMP trap and Syslog support
    • Firmware upgradeable
    • Out-of-Band Access – Modem dial-in/dial-out/dial-back support
    • Adapter ID Function: Stores port information allowing administrators to relocate the servers to different ports, without having to re-configure the adapters and switches
    • Port Share Mode allows multiple users to gain access to a server simultaneously
    • Integration with ATEN CC2000 Management Software
    • Integration with ATEN CCVSR Video Session Recording Software1
    • Supports ATEN KVM over IP Console Station (KA8270 / KA8280 / KA8278 / KA8288)
    • Power Association enables the switch’s KVM ports to be associated with ATEN’S PDUs power outlets for remote power management of the servers from the switch’s interface
    • Power Over the NET™ integration for remote power control, plus support for 3rd party power distribution units (PDUs)
    • Manage browser access methods (Browser, http, https)
    • IPv6 capable

      Note:
      1. Supports recording computer operations accessed via remote sessions



  • Easy-to-Use Interface
    • Local Console, browser-based, and AP GUIs offer a unified multilanguage interface to minimize the user training time and increase productivity
    • Multiplatform client support (Windows, Mac OS X, Linux, Sun)
    • Multi-browser support: Edge, Chrome, Firefox, Safari, and Opera
    • Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
    • Supports web-friendly KVM-over-IP access with HTML5 WebClient viewer – users can remotely access all the connected servers and PCs without Java or browser plug-in installation
    • Magic Panel – a special hideaway control panel with configurable function icon
    • Full-screen or sizable and scalable Virtual Remote Desktop
    • Panel Array Mode available to both local console operators and remote access users
    • Keyboard/Mouse Broadcast – keyboard and mouse inputs can be duplicated on all the attached servers
    • Video syncing with the local console – local console monitor’s EDID information stored on the KVM Adapter Cables for display resolution optimization



  • Advanced Security
    • High-grade security – supports TLS 1.3 and an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #4282)
    • Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
    • Supports TLS 1.3 data encryption and RSA 2048-bit certificates to secure users log in from browser
    • Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
    • IP/MAC Filter for enhanced security protection
    • Configurable user and group permissions for server access and control
    • Automated CSR creation utility and third party CA certificate authentication



  • Virtual Media
    • Virtual media enables file applications, OS patching, software installation and diagnostic testing
    • Works with USB enabled servers in operating system and BIOS level
    • Support DVD/CD drives, USB mass storage devices, PC hard drives and ISO images



  • Virtual Remote Desktop
    • Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
    • Full screen video display or scalable video display
    • Message Board for communication among remote users
    • Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
    • Keyboard pass through support
    • Exit Macros support
    • On-screen keyboard with multilanguage support
    • BIOS-level access
