I/O Ports
I/O Ports 24 RJ-45 10/100/1000 ports, 4 SFP+ 1/10GbE ports
Memory and Processor
Memory 512 MB SDRAM, 256 MB flash
Processor ARM Cortex-A9 @ 800MHz
Packet buffer size 1.5 MB
Dimensions And Weight
Weight (metric) 2.41 kg
Product Dimensions (metric) 44.25 x 22.15 x 4.39 cm
Performance
Throughput (Mpps) 95.23 Mpps
switching capacity 128 Gbps
Electrical Characteristics
Maximum power rating 22.6 W
Idle power 9.3 W
Warranty
Warranty 5 Years

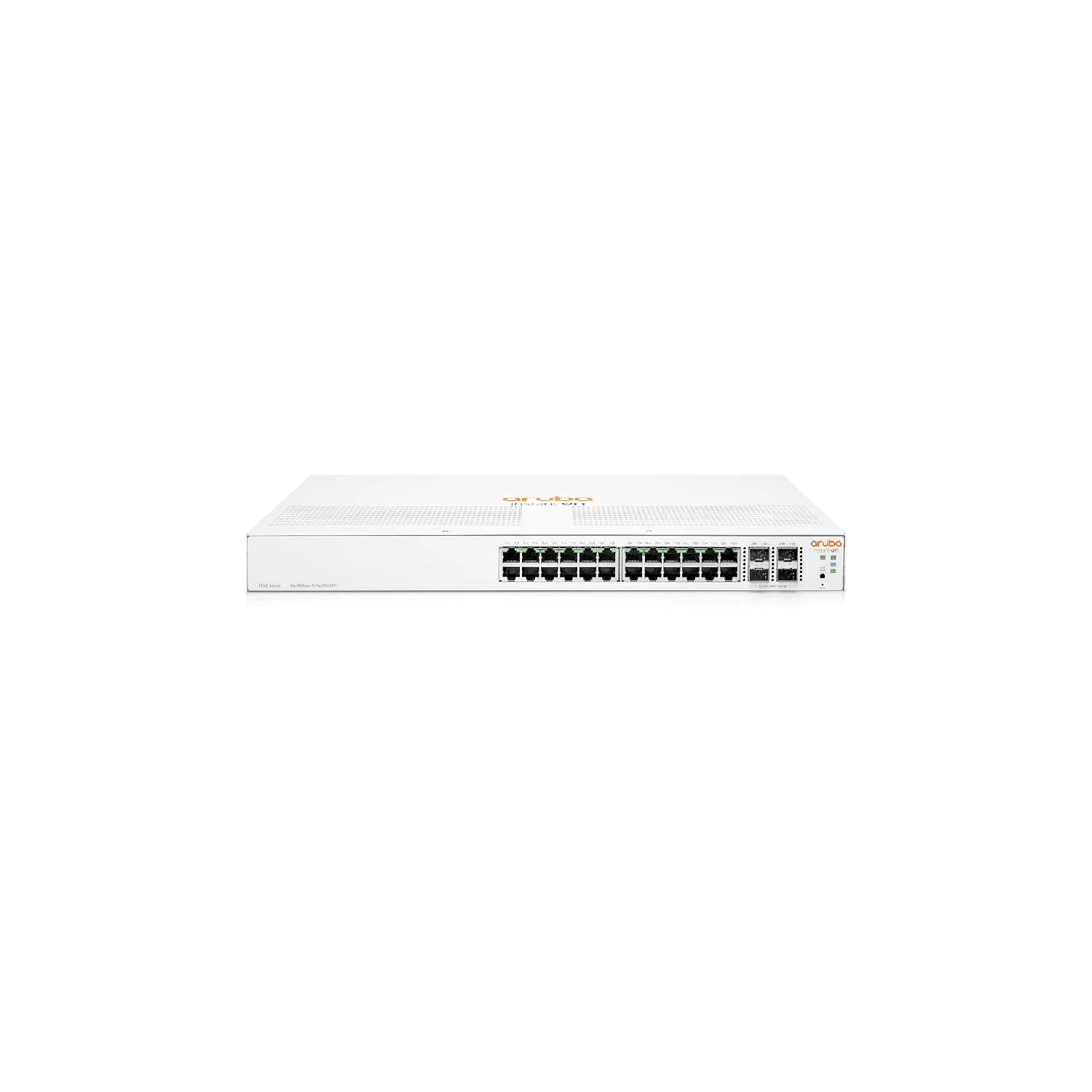

The Aruba Instant On 1930 24G 4SFP/SFP+ Switch is a smart-managed switch designed for small to medium-sized businesses that require high-performance networking, advanced features, and simplified cloud management. This model provides gigabit connectivity with fiber uplinks, suitable for business environments with moderate to high traffic demands. Here’s a detailed overview of its features:

1. Port Configuration and Uplinks

  • Total Ports: 24 Gigabit Ethernet (1G) ports for connecting devices such as computers, printers, and wireless access points.
  • Uplink Ports: 4 dedicated SFP/SFP+ uplink ports, allowing for either 1Gbps or 10Gbps uplink speeds. These high-speed uplinks support long-distance connectivity to other network devices or core switches, providing flexibility for network expansion and backbone connections.

2. Performance and Switching Capacity

  • Switching Capacity: 128 Gbps, designed to handle high volumes of traffic efficiently without creating bottlenecks, especially suited for environments with many connected devices.
  • Packet Forwarding Rate: 95.23 Mpps (Million packets per second), ensuring smooth and reliable data flow even under heavy load conditions, ideal for handling large-scale traffic and applications.

3. Layer 2+ Switching Features

  • VLAN Support: Offers support for up to 256 VLANs, allowing for network segmentation, which improves security, traffic management, and operational efficiency.
  • Link Aggregation (LACP): Enables the grouping of multiple ports to increase bandwidth, improve redundancy, and ensure seamless failover capabilities in case of link failure.
  • Quality of Service (QoS): Prioritizes network traffic, providing better performance for high-priority applications such as VoIP, video conferencing, and other critical business applications.

4. Enhanced Security Features

  • Access Control Lists (ACLs): Allows for fine-grained control of traffic, ensuring only authorized users have access to specific network resources.
  • 802.1X Network Access Control: Ensures that only authorized devices can connect to the network, adding an extra layer of security.
  • DHCP Snooping and Dynamic ARP Protection: Monitors IP-to-MAC address bindings and blocks unauthorized devices, protecting the network from potential security threats and IP spoofing attacks.

5. Cloud-Based and Local Management Options

  • Aruba Instant On App and Web Portal: Offers cloud-based management through the Aruba Instant On app and web portal, allowing for remote configuration, monitoring, and troubleshooting from anywhere.
  • Local Web GUI and CLI Management: The switch also provides local management via a web-based GUI and command-line interface (CLI), offering flexibility for onsite network administration without relying on the cloud.
  • Automatic Firmware Updates: Regular firmware updates ensure that the switch remains current with the latest security patches and features, maintaining optimal performance and security.

6. Energy Efficiency and Silent Operation

  • Energy Efficient Ethernet (EEE): Reduces power consumption during periods of low network activity, helping to lower operational costs over time.
  • Fanless Design: With a fanless design, this switch operates quietly, making it ideal for office spaces, retail environments, and other noise-sensitive areas.

7. Flexible Deployment and Compact Design

  • Rack-Mountable Design: The switch’s compact form factor can be easily mounted in standard network racks, which is ideal for businesses with structured wiring setups in network closets or data centers.
  • Plug-and-Play Setup: Simplifies deployment with plug-and-play functionality, making it accessible for users with limited IT experience.

8. Warranty and Support

  • Limited Lifetime Warranty: Aruba provides a limited lifetime warranty with next-business-day replacement and 24/7 access to technical support resources, ensuring long-term reliability and support for critical business operations.
