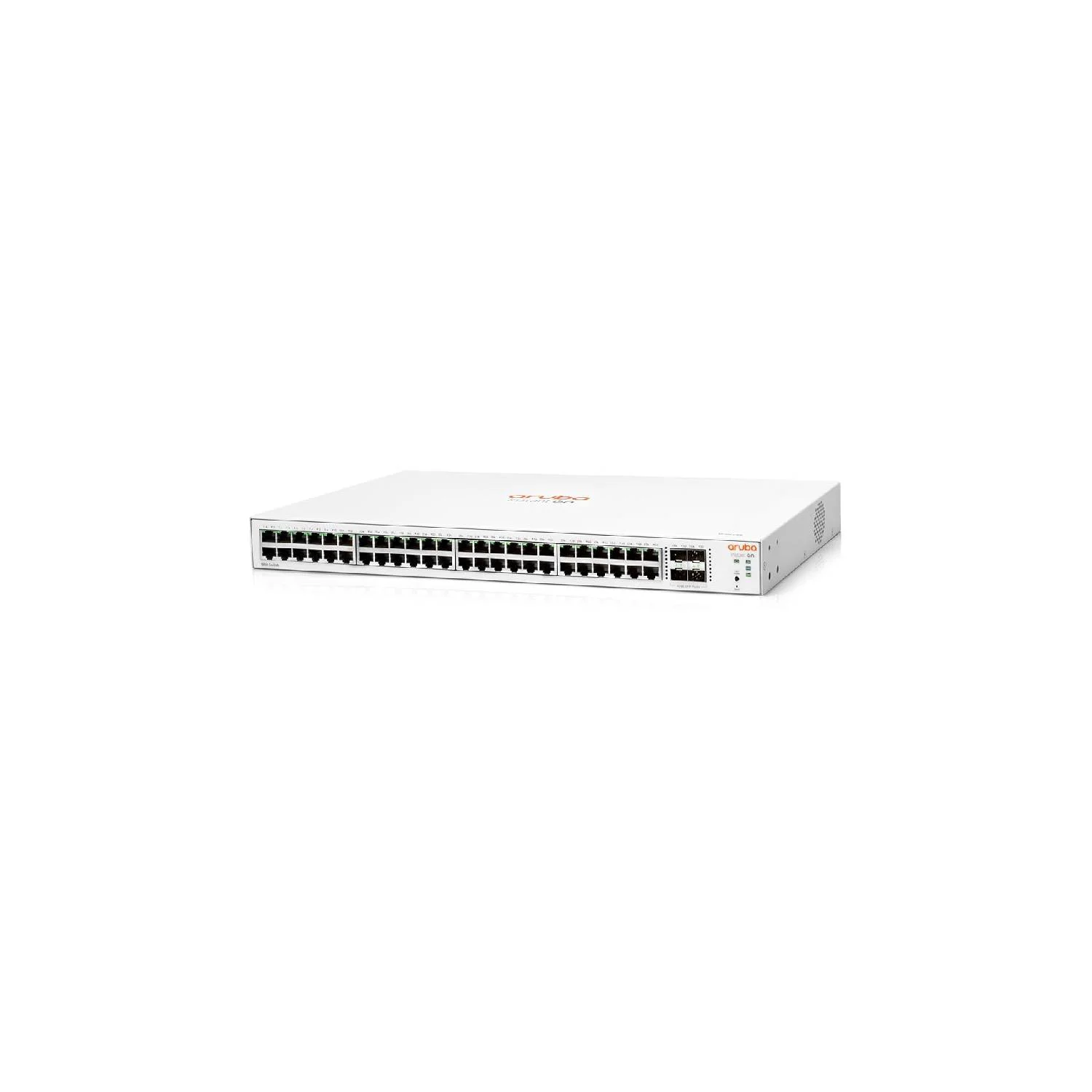

Aruba Instant On 1830 48G 4SFP Switch | JL814A

1,072.00 AED

Brand:  Aruba



  • 48 RJ-45 10/100/1000 ports
  • 253.0 x 443.0 x 43.9 mm
  • Throughput- 77.37 Mpps
  • 3.54 kg
  • 5 Years Warranty
Availability:

In stock

1,072.00 AED

In stock

Quantity:
Add to wishlist
Add To Compare
Buy Now
Categories: , ,

Frequently bought together

Related Products

I/O Ports
I/O Ports 48 RJ-45 10/100/1000 ports
Memory and Processor
Memory 512 MB SDRAM, 256 MB flash
Processor ARM Cortex-A9 @ 800MHz
Packet buffer size 1.5 MB
Dimensions And Weight
Weight (metric) 3.54 kg
Product Dimensions (metric) 253.0 x 443.0 x 43.9 mm
Performance
Throughput (Mpps) 77.37 Mpps
switching capacity 104 Gbps
Electrical Characteristics
Maximum power rating 100-127V: 40.2W 200-220V: 40W
Idle power 100-127V: 17.7W 200-220V: 17.7W
Warranty
Warranty 5 Years

The Aruba Instant On 1830 48G 4SFP Switch is a high-capacity, smart-managed switch tailored for small to medium-sized businesses that need reliable connectivity, scalability, and easy-to-use cloud management. Here’s an in-depth breakdown of its features:

1. Port Configuration and Uplinks

  • Total Ports: 48 Gigabit Ethernet (1G) ports for connecting a wide array of devices.
  • Uplink Ports: 4 SFP fiber uplink ports support high-speed links to other network devices, allowing seamless expansion and long-distance connectivity for data centers or core networks.

2. Performance and Switching Capacity

  • Switching Capacity: 104 Gbps, ensuring the switch can handle high traffic volumes without congestion, making it suitable for data-intensive environments.
  • Packet Forwarding Rate: 77.38 Mpps (Million packets per second), providing efficient packet processing and smooth data flow even under heavy load.

3. Layer 2 Switching Features

  • VLAN Support: Capable of supporting up to 256 VLANs, allowing network segmentation for better traffic management, security, and improved network efficiency.
  • Link Aggregation (LAG): Supports link aggregation to combine multiple links, increasing bandwidth and providing redundancy for enhanced reliability.
  • Quality of Service (QoS): Ensures prioritization of critical network traffic to optimize performance for applications like VoIP, video conferencing, and streaming.

4. Security Features

  • Access Control Lists (ACLs): Controls which users and devices have access to certain areas of the network, enhancing security.
  • 802.1X Authentication: Provides device and user authentication, adding a layer of security to ensure only authorized devices connect.
  • DHCP Snooping and ARP Protection: Prevents IP spoofing and unauthorized devices from joining the network by monitoring IP-to-MAC address bindings.

5. Cloud-Based Management with Aruba Instant On

  • Aruba Instant On App and Web Portal: Provides intuitive cloud management through the Instant On mobile app and web portal, allowing for remote configuration and monitoring.
  • Automatic Firmware Updates: Receives updates for enhanced security and functionality, ensuring the switch is up to date.
  • Network Insights and Alerts: Real-time monitoring and alert features notify administrators of network issues and provide traffic insights, helping maintain a stable network.

6. Energy Efficiency and Silent Operation

  • Energy Efficient Ethernet (EEE): Reduces power consumption during periods of low network traffic, helping reduce operational costs.
  • Fanless Design: The switch operates silently without a fan, making it ideal for noise-sensitive environments like offices, classrooms, or retail stores.

7. Deployment and Design

  • Rack-Mountable Design: Compact, rack-mountable form factor makes it easy to install in network racks or cabinets, ideal for organized deployments.
  • Plug-and-Play Setup: The switch is designed for straightforward installation and minimal setup, making it easy for non-technical users to deploy.

8. Warranty and Support

  • Limited Lifetime Warranty: Aruba provides a limited lifetime warranty with next-business-day replacement and 24/7 access to technical support resources, ensuring dependable support.
