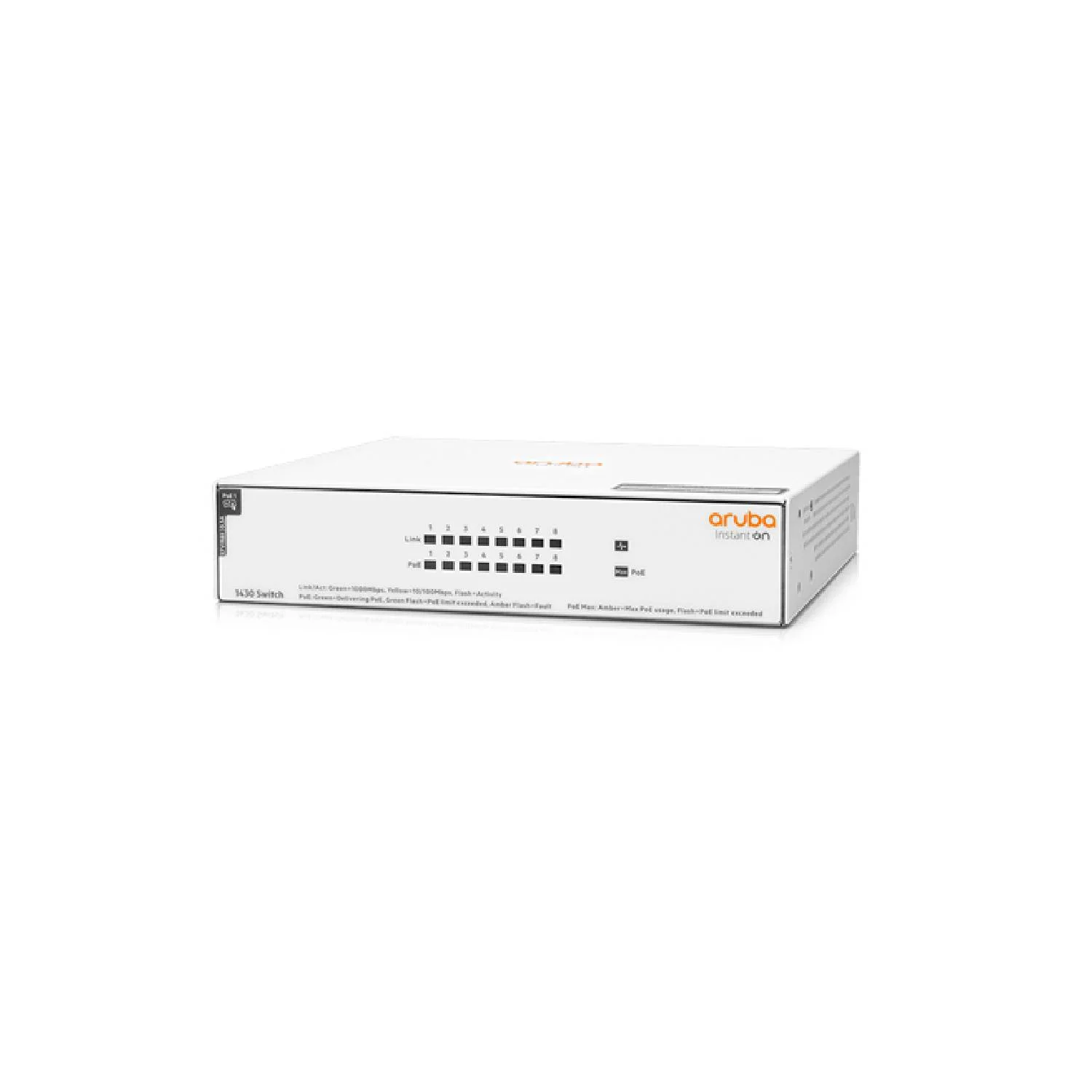

Aruba Instant On 1430 8G Class4 PoE Switch | 64W | R8R46A

468.00 AED

Brand:  Aruba



  • 8 RJ-45 10/100/1000 ports
  • 15 x 17.7 x 3.7 cm
  • Throughput- 11.90 Mpps
  • 0.77 kg
  • 5 Years Warranty
Availability:

In stock

468.00 AED

In stock

Quantity:
Add to wishlist
Add To Compare
Buy Now
Categories: , ,

Frequently bought together

Related Products

I/O Ports
I/O Ports 8 RJ-45 10/100/1000 ports
Memory and Processor
Memory 128Kb
Processor EEPROM
Packet buffer size 2.0 Mb
Dimensions And Weight
Weight (metric) 0.77 kg
Product Dimensions (metric) 15 x 17.7 x 3.7 cm
Performance
Throughput (Mpps) 11.90 Mpps
switching capacity 16 Gbps
Electrical Characteristics
Maximum power rating 90W
Idle power 4.1W
Warranty
Warranty 5 Years

The Aruba Instant On 1430 8G Class4 PoE 64W Switch is a versatile, unmanaged switch in the Aruba Instant On 1430 series, ideal for small businesses looking to add Power over Ethernet (PoE) capabilities. This model combines plug-and-play simplicity with PoE support, making it perfect for small offices, retail, and remote work setups needing to power devices such as IP phones, wireless access points, and surveillance cameras.

Key Features

  1. PoE (Power over Ethernet) Capabilities:
    • Equipped with 8 Gigabit Ethernet ports, with 4 of them supporting PoE+ (802.3at) for data and power delivery over a single cable.
    • Total PoE budget of 64W, capable of powering devices like IP cameras, access points, and VoIP phones.
    • Supports PoE Class 4, allowing each PoE+ port to deliver up to 30W of power per device, optimizing power distribution and management.
  2. Connectivity and Performance:
    • Each port provides up to 1 Gbps, allowing for a combined switching capacity of 16 Gbps.
    • Non-blocking architecture ensures smooth traffic flow, reducing bottlenecks and enhancing network performance.
  3. Ease of Deployment:
    • Unmanaged design with auto-negotiation for easy plug-and-play setup.
    • Auto-MDI/MDIX on all ports eliminates the need for crossover cables, simplifying cabling.
  4. Compact, Silent Design:
    • Fanless design ensures quiet operation, making it suitable for noise-sensitive environments like small offices.
    • Compact form factor with desktop or wall-mount installation options.
  5. Energy Efficiency:
    • Supports IEEE 802.3az Energy Efficient Ethernet (EEE), automatically reducing power consumption during periods of low activity.
    • PoE power scheduling can further optimize power consumption, providing power only when necessary.
  6. Basic QoS and Traffic Management:
    • IEEE 802.1p QoS support enables prioritization of traffic, ensuring high-priority applications receive the necessary bandwidth, ideal for voice and video data.
    • Supports traffic prioritization per port for improved performance on critical applications.
  7. Reliability and Loop Prevention:
    • Built-in loop protection automatically detects and prevents network loops that could disrupt network performance.
    • Durable, compact design backed by Aruba’s high reliability standards, with limited lifetime warranty and access to 24/7 support for 90 days.

Technical Specifications

  • Dimensions: 164 x 123 x 26 mm
  • Weight: ~0.39 kg
  • Power Consumption:
    • Maximum power usage: 73.3W (with full PoE load)
    • Maximum PoE power budget: 64W
  • PoE Standards Supported: IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
  • Operating Temperature: 0°C to 40°C
  • Warranty: Limited Lifetime Warranty with 24/7 phone support for 90 days.
