Output
Max Configurable Power (Watts) 1.0k Watts / 1.5 kVA
UPS Type Line interactive
Input
Input Frequency 50 – 60 Hz
Input Voltage Range for Main Operations 151 – 302 Adjustable, 160 – 286V
Other Input Voltages 220, 240
Batteries
Battery Type Lead-acid battery
Typical Recharge Time 3 hour(s)
Expected Battery Life (years) 3-5
Battery Charge Power (Watts) 136 Watts
Communication & Management
Control Panel Multifunction LCD
Interface Port(s) SmartSlot, USB
Dimensions And Weight
Weight (metric) 24.09 kg
Product Dimensions (metric) 21.9 x 17.1 x 43.9 cm
General
Warranty 2 years repair or replace

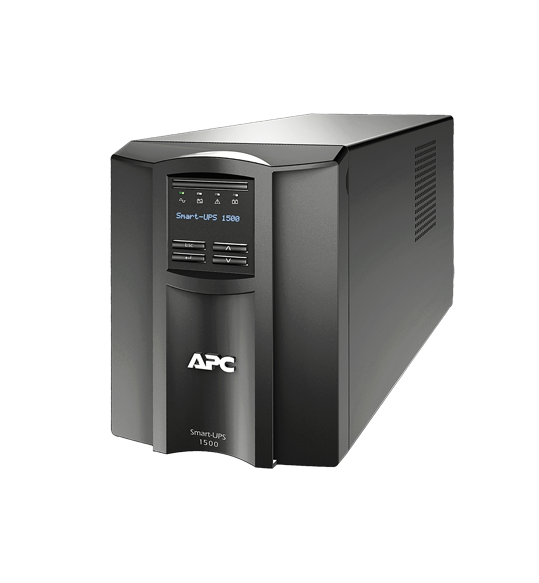

APC Smart-UPS 1500VA Tower LCD 230V – SMT1500IC

APC Smart-UPS C 2000VA LCD 230V-SMC2000I Cold-start capable Provides temporary battery power when the utility power is out. Green mode Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. High online efficiency Reduces utility costs, generates less heat.LCD Status Display Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.

Batteries & Runtime

Efficiency : View Efficiency Graph

Operational Features

Manageability

  • USB connectivity: APC Smart UPS Provides management of the UPS via a USB port (not available on all models).
  • Serial connectivity: Provides management of the UPS via a serial port.
  • Network manageable: smt1500ic Most models provide remote power management options of the UPS over the network
  • LED status indicators: Quickly understand unit and power status with visual indicators.
  • Audible alarms: smt1500ic Provides notification of changing utility power and UPS conditions.

Availability

  • Automatic self-test : smt1500ic Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Disconnected battery notification : Warns when a battery is not available to provide backup power.
  • Power conditioning: Protects connected loads from surges, spikes, lightning, and other power disturbances.
  • Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent.

Serviceability

    • Battery failure notification :smt1500ic  Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
    • Resettable circuit breakers : smt1500ic Enables a quick recovery from overload events.
    • Predictive failure notification : Provides early-warning fault analysis ensuring proactive component replacement.
    • User-replaceable batteries :smt1500ic  Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Connected Smart-UPS Features:

APC SmartConnect:

APC SmartConnect is a proactive remote UPS cloud monitoring feature that is accessible from any internet connected device.

High-efficiency Greenmode:

Optimum efficiency which saves on utility and
cooling costs.

Pure Sinewave:

A pure form of sinewave designed to emulate utility power, will support your device upon battery backup.

Network-gradePower:

Provides stable power conditions by filtering noise,automatic voltage regulation (AVR), and surge protection.

Intelligent BatteryManagement :

Temperature compensated charging extends life and advanced algorithms recommend replacement date

mergencyPower Off (EPO) :

Provides for remote UPS shut-off in the event of a fire or other emergency (2,200 VA and above)

Safety and General Information

Deenergizing safety:

The UPS contains internal batteries and may present a shock hazard even when disconnected from the branch circuit (mains). Before installing or servicing the equipment check that the:

  • Input circuit breaker is in the OFF position.
  • Internal UPS batteries are removed.
Electrical safety:

  • Use tools with insulated handles.
  • Do not handle any metallic connector before power has been disconnected.
  • For models with a hardwired input, the connection to the branch circuit (mains) must be performed by a qualified electrician.
  • The protective earth conductor for the UPS carries the leakage current from the load devices (computer equipment). An insulated ground conductor is to be installed as part of the branch circuit that supplies the UPS. The conductor must have the same size and insulation material as the grounded and ungrounded branch circuit supply conductors. The conductor will typically be green, with or without a yellow stripe.
  • Leakage current for a pluggable, Type A UPS may exceed 3.5 mA when a separate ground terminal is used.
  • The UPS input ground conductor must be properly bonded to protective earth at the service panel.
  • If the UPS input power is supplied by a separately derived system, the ground conductor must be properly bonded at the supply transformer or motor generator set.
Hardwire safety:

  • Check that all branch circuit (mains) and low voltage (control) circuits are deenergized, and locked out
    before installing cables or making connections, whether in the junction box or to the UPS.
  • Wiring by a qualified electrician is required.
  • Check national and local codes before wiring.
  • Strain relief is required for all hardwiring (supplied with select products). Snap in type strain reliefs are recommended.
  • All openings that allow access to UPS hardwire terminals must be covered. Failure to do so may result in personal injury or equipment damage
  • Select wire size and connectors according to national and local codes
